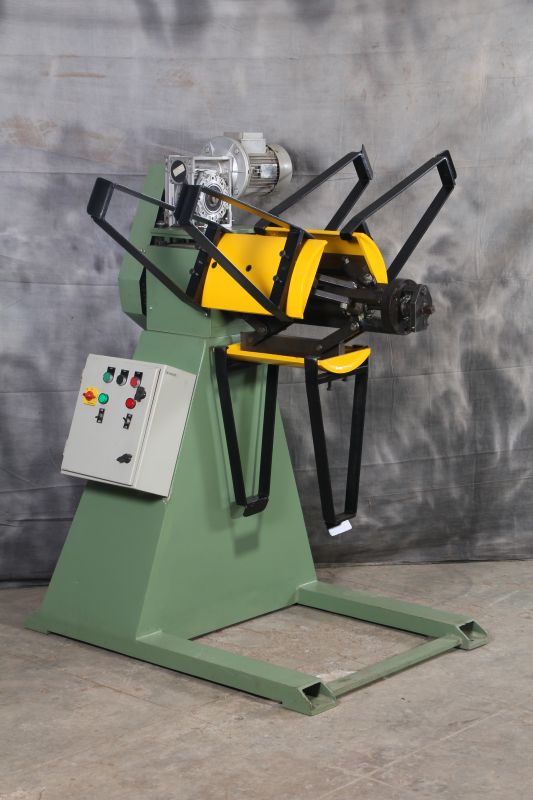

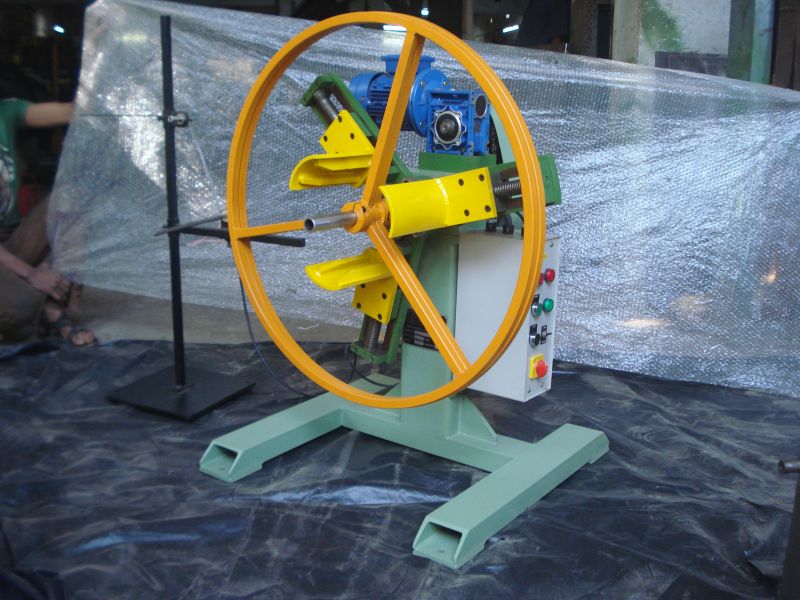

Motorized Decoiler

Features:

• Precisely engineered
• High operational fluency
• Reliable operation

• Other Details:
• Tension winding arrangement by set of rollers for tight winding.
• Electro Magnetic / Pneumatic Brakes.
• Coil Hold-down (Hydraulic / Pneumatic) for Springy materials.
• Jaw Expansion by Hydraulics.
• Coilers with Shafting & Key to load Bobbin.
• Special Purpose Winding Machine.
• Centrally Expandable Jaws.
• All Jaws have fully covered drum for best stability.
• Pneumatically operated hold-down with potentiometer for speed variation & holding the coil with varying pressure with hand-lever.
• Mandrel rotating on bearings.
• Precision Tension Coiler & Winders for Strip Casting & Rolling Mills
• The Spindle would be driven by D.C. Variable Drive with gear-reducer & brake mechanism. D.C. Drive is in constant tension. Speed reduces automatically with diameter build-up for tight winding.
• The Control Panel would have following standard parameters ;
• Forward / Reverse Selector.
• Start / Stop Button.
• Emergency Shut Off & Hold-down.
• Speed / Tension Selector.
• In-built Transformer.
• Potentiometer to set the Tension manually.
• Hand-Lever operation for low tension in starting high tension in working.

Features :

• Strongly built
• Impeccable performance
• Longer operational life

Other Details :

• All units are available in non motorized version with drag brake.
• Electro Magnetic / Pneumatic Brakes.
• Coil hold-down (hydraulic / pneumatics ) for springy materials.
• Hydraulic Jaws Expansion.
• Decoilers with Shafting & Key to load bobbin.
• Limit arm through limit Switches/Photo sensors.
