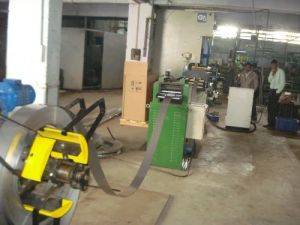

NC Leveller Feeder

NC Leveller Feeder

Price : 35 Lac / Piece

MOQ : 1 Piece

Business Type	Manufacturer, Exporter, Supplier
Application	Coil Handling Equipment
Color	White
Condition	New
Click to view more

Preferred Buyer From

Location

Anywhere in India

Product Details

Industry

Manufacturing

Warranty

12 months

Heavy duty coil feeding lines for Press Feed equipments

Uncoiler with manual / hydraulic jaw expansion and variable drive & loop control system.
Straightening and feed rolls hardened and hard chrome plated
Roll baskets along with threading table to assist and support the threading of coil material
Hydraulic / pneumatic hold-down, snubber and piller for threading is available on request.
Optional Coil car is available on request.
Coil width guide manual/automatic.
Models uptill 1300 mm width and thickness uptill 8 mm is available on request.
Feed Height adjustment is provided.
Coil tip flattener roller is available on request.

Specifications

Model	C-400	C-600	C-800
Parameters
Width (mm)	400 mm	600 mm	800 mm
Thickness (mm)	0.7 - 3.0 mm	0.8 - 6.0 mm	0.8 - 6.0 mm
Max Coil Weight	5000 Kg	5000 Kg	5000 Kg
Straitening Capacity / Width	3.0 x 400 mm	2.5 x 600 mm	2.5 x 600 mm / 2.0 x 800 mm
		6.0 x 300 mm	6.0 x 300 mm
Coil OD	1500 mm	1500 mm	1500 mm
Coil ID	508	508	508
Features	Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack.	Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack.	Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack.
Line Speed (Max)	15	15	15

The above parameters are for the material having tensile strength 40kgf/mm² max.
Models of higher capacity or higher or lower line speeds are available on request.

Technical specifications are indicative and subject to change to suit end application.
