1.60 Lac / Piece( + 18% GST applicable)
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Press Room Automation |
| Material | MS / SS / Copper, Brass |
| Driven Type | Mechanical, Electric |
| Click to view more | |
Product Details
Color
White
Condition
New
Automatic Grade
Semi Automatic, Manual, Fully Automatic, Automatic
Type
Motorized Decoiler
Weight
200 / 500 / 1000 / 1500 / 2000 / 2500 etc.
Warranty
1yrs
Country of Origin
India
Model Name/Number
VD-10
Width
300 mm
Gross Weight
1000 Kg
Power Consumption
1.0 HP
JAW Expansion
330 to 450 mm
Expansion Type
Mech Link Type
OD. Max
1200 mm
Centre Height from Floor
1005
Occup. Area
1250X1100X1650 mm
Packaging Type
Green
Packaging Details
Depend.

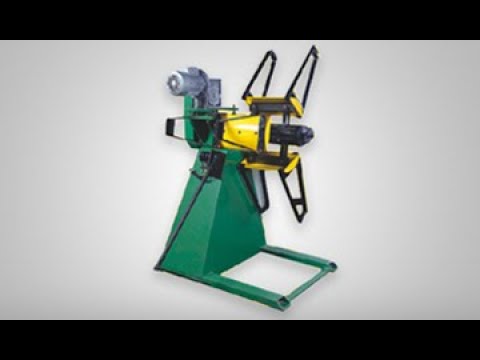

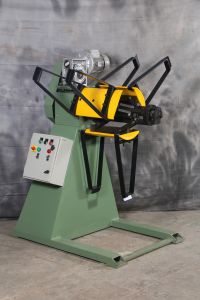

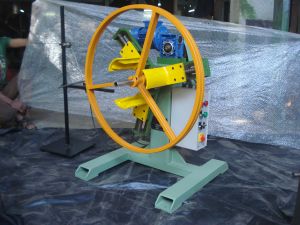

Motorised Decoiler ( Standard Models )(Vertical )
| Model | Max. Weight kg |
Max. Width (mm) |
JAW Expansion (mm) |
Expansion Type (mm) |
OD. Max (mm) |
Power (hp) |
Centre Height from Floor | Occup. Area (mm) L. W. H. |
| VD-1(PNE) | 100 | 100 | 300 to 380 | Mech Link Type | 800 | 6 bar | 600 | 850X800X1100 |
| VD-2 | 200 | 150 | 150 to 350 | Mech Screw Type | 800 | 0.5 | 600 | 850X800X1100 |
| VD-5 | 500 | 150 | 300 to 500 | Mech Screw Type | 1000 | 0.5 | 840 | 1050X950X1400 |
| VD-10 | 1000 | 300 | 330 to 450 | Mech Link Type | 1200 | 0.75 | 1005 | 1250X1100X1650 |
| VD-16 | 1600 | 400 | 330 to 450 | Mech Link Type | 1500 | 1 | 1040 | 1700X1150X1900 |
| VD-25 | 2500 | 400 | 420 to 530 | Mech Link Type | 1500 | 1.5 | 1050 | 1700X1300X1850 |
All above equipments are designed for Line speed of 12-15 Mtrs. Per Minute. Models of higher capacity or Higher or Lower Line speeds are available on request.
Technical specifications are indicative and subject to change to suit end application.
