90,000.00 / Piece( + 18% GST applicable)
| Business Type | Manufacturer |
| Pressure | Medium Pressure |
| Shape | Rectangular |
| Driven Type | Pneumatic |
| Click to view more | |
Product Details
Brand Name
Press Room Automation
Material
Mild Steel
Finishing
Polished
Color
White
Warranty
1 Year
Max Stroke Thickness
2.5 mm
Max Stroke
200 Per Minute
Max Stroke Length
50 mm
Max Width
50 mm
Required Air Pressure
5-8 Bar
Port
Ready Stock
Payment Terms
Other
Delivery Time
Ready Stock
Packaging Details
Depend

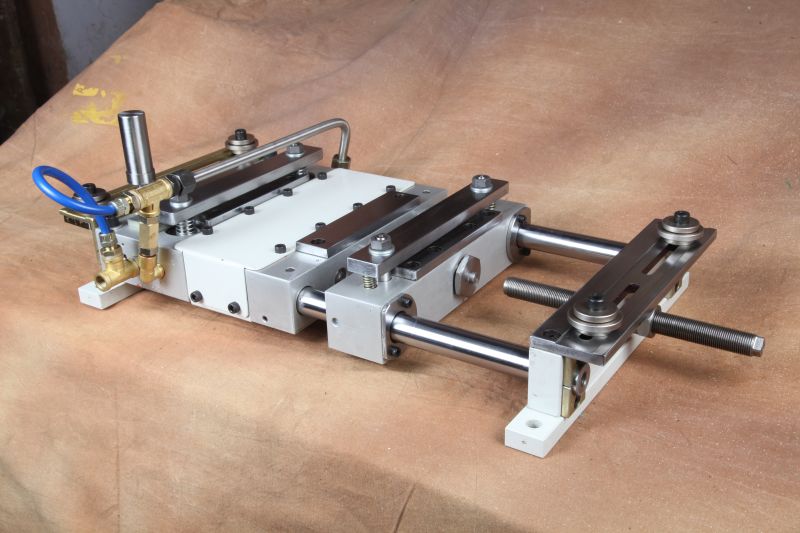

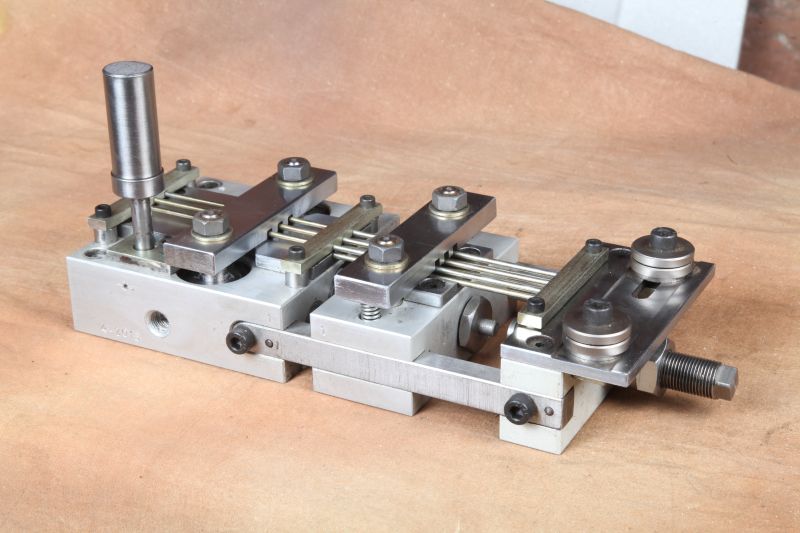

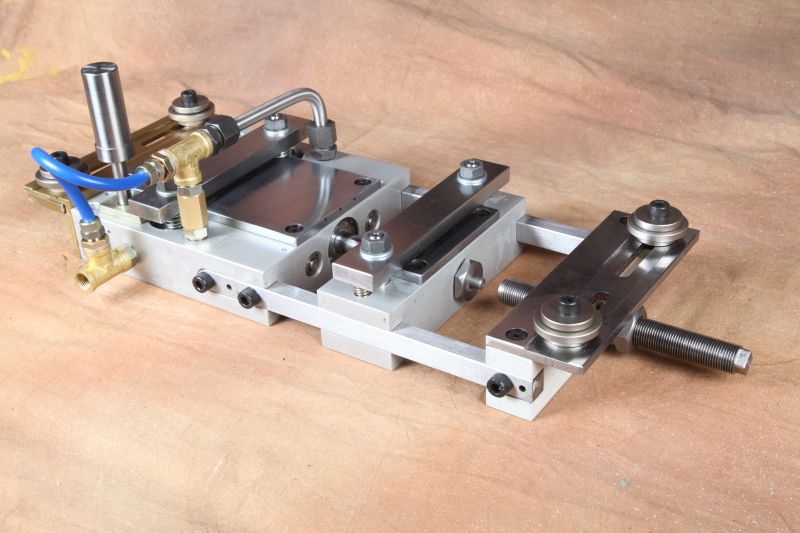

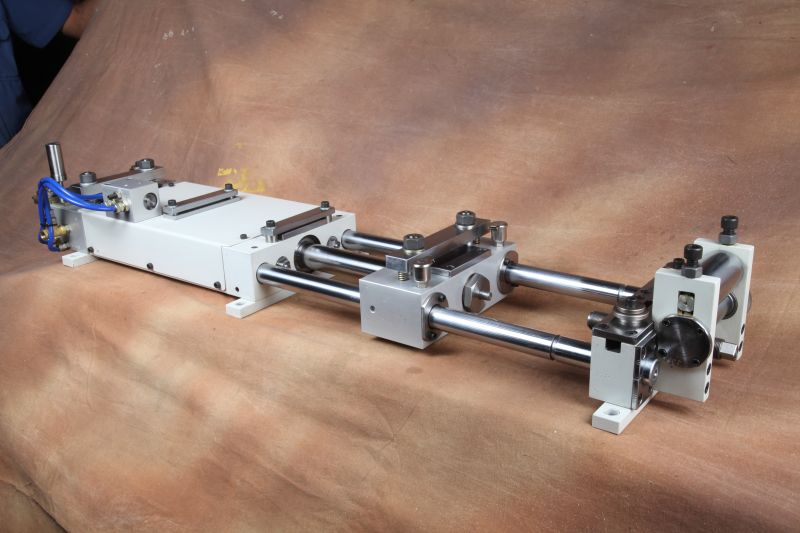

Extra Mid Series Pneumatic Feeder is used to feed width from 100-600 mm & thickness from 0.5-2.5 mm material. It is most suitable for manufacturing small auto parts, kitchen appliances, utensils, furniture & fixtures, Locking Systems, etc.
The Feeder will be actuated by Remote Valve via Solenoid Valve, Proximity Sensor and Cam Assembly along with pilot release mechanism for piloted tools and thin strip guiding device for feeding material below 0.5 mm thickness.
| Extra Mid Series (EMS) | ||||||||
| Max width in mm | Max stroke Length in mm | Max strip Thickness mm | Max strokes Per minute | Pressure of fix Clamps kg. | Pressure of Mobile Clamps kg. | Traction | Total Consumption CC/Stroke | Weight Kg. |
| force Kg. | ||||||||
| 100 | 100 | 2.5 | 140 | 65 | 137 | 40 | 0.77 | 18.5 |
| 100 | 200 | 2 | 80 | 65 | 137 | 40 | 1.73 | 19.5 |
| 100 | 300 | 1.5 | 60 | 65 | 137 | 40 | 2.56 | 20.5 |
| 150 | 150 | 2 | 100 | 65 | 137 | 40 | 1.54 | 23 |
| 225 | 200 | 1.2 | 80 | 65 | 137 | 40 | 1.73 | 30 |
| 300 | 300 | 0.6 | 60 | 65 | 137 | 40 | 2.56 | 35 |
| 400 | 100 | 1 | 80 | 65 | 137 | 40 | 0.77 | 42.5 |
| 600 | 100 | 0.5 | 60 | 65 | 137 | 40 | 0.77 | 51 |

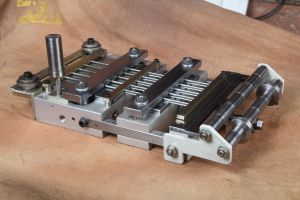

Looking for "Pneumatic Feeder (Coil Feeder)" ?
